COMANSA 2100 SERIES

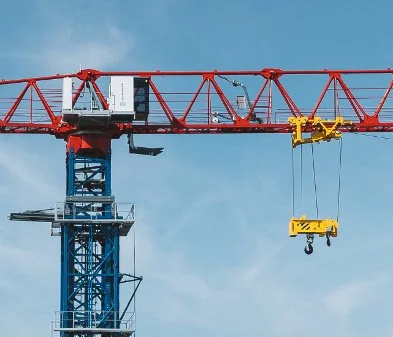

The tower cranes in Comansa’s 2100 Series are designed to offer maximum performance in projects involving heavy loads.
The hoisting speed in these projects becomes a key factor for achieving greater efficiency, which is why these tower cranes come standard equipped with Effi-Plus high-speed hoist motors to work at speeds of over 330 metres per minute (depending on the model).
Comansa’s modular system allows most jib parts to be interchanged between the different Flat-top tower cranes in the series, which can result in major savings for rental companies, meaning they do not need to buy a complete model if they already have a tower crane from the same series.
Comansa’s 2100 Series includes the following tower crane models:
RELATED DOCUMENTS
-
Max load: 12 or 20 t, depending on the version
Reach: 74 metres
Jib-end load: 2,700 kg + 10% with PowerLift
-
Max load: 26 460 or 44 090 lb, depending on the version
Reach: 242.8 ft
Jib-end load: 5 950 lb + 10% with PowerLift
-
Max load: 20 or 25 t, depending on the version
Reach: 80 metres
Jib-end load: 2,600 or 3,000 kg depending on the version + 10% with PowerLift
-
Max load: 44 090 or 55 120 lb, depending on the version
Reach: 262.5 ft
Jib-end load: 5 730 or 6 610 lb depending on the version + 10% with PowerLift
-
Max load: 20 or 25 t, depending on the version
Reach: 80 metres
Jib-end load: 3,600 or 4,000 kg depending on the version + 10% with PowerLift
-
Max load: 44 090 or 55 120 lb, depending on the version
Reach: 262.5 ft
Jib-end load: 7 940 or 8 820 lb depending on the version + 10% with PowerLift
-
Max load: 20 or 25 t, depending on the version
Reach: 80 metres
Jib-end load: 4,500 kg and 4,100 kg depending on the version + 10% with PowerLift
-
Max load: 44,900 lb or 55,120 lb, depending on the version
Reach: 262.5 ft
Jib-end load: 9,920 lb and 9,040 lb depending on the version + 10% with PowerLift
-
Max load: 20, 25 or 37´5 t, depending on the version
Reach: 80 metres
Jib-end load: 4,500 kg and 4,100 kg depending on the version + 10% with PowerLift
-
Max load: 44,900 lb, 55,120 lb or 82,670 lb, depending on the version
Reach: 262.5 ft
Jib-end load: 9,920 lb or 9,040 lb depending on the version + 10% with PowerLift
-
Max load: 20, 25, 37.5 or 50 t, depending on the version
Reach: 84 metres
Jib-end load: 4,200 to 5,300 kg depending on the version + 10% with PowerLift
-
Max load: 44 090 to 110 230 lb, depending on the version
Reach: 275.6 ft
Jib-end load: 9 260 to 11 680 lb depending on the version + 10% with PowerLift
-
Max load: 25, 37.5 or 50 t, depending on the version
Reach: 80 metres
Jib-end load: 6,700 or 7,300 kg depending on the version + 10% with PowerLift
-
Max load: 55 120, 82 670 or 110 230 lb, depending on the version
Reach: 262.5 ft
Jib-end load: 14 770 or 16 090 lb depending on the version + 10% with PowerLift
-
Max load: 25, 37.5 or 50 t, depending on the version
Reach: 80 metres
Jib-end load: 10,200 or 10,800 kg depending on the version + 10% with PowerLift
-
Max load: 55 120, 82 670 or 110 230 lb, depending on the version
Reach: 262.4 ft
Jib-end load: 22 490 or 23 810 lb depending on the version + 10% with PowerLift
-
Max load: 50 or 66 t, depending on the version
Reach: 84.6 or 85 metres, depending on the version
Jib-end load: between 6,900 and 9,700 kg, depending on the version + 10% with PowerLift
-
Maximum load: 110,230 or 145,500 lb, depending on the version
Reach: between 275.6 or 278.9 ft, depending on the version
Jib-end load: between 15,210 and 21,380 lb, depending on the version + 10% with PowerLift
